U.S. ARMY xTECH COMPETITOR • TRL-4 ADVANCED ROBOTICS

Autonomous In-Situ Earth 3D Construction System

Mounted on standard 8-ton excavators. 90%+ local soil usage, zero Portland cement requirement, continuous Raschel sleeve dispensing, and automated catenary dome engineering for hardened fortifications and resilient habitats.

Request Briefing Explore Mechanics ↓
Zero Portland Cement Anti-Drone Catenary Dome Standard Excavator Mount
SYSTEM: CJC FORT / AES-3D TRL-4 VERIFIED

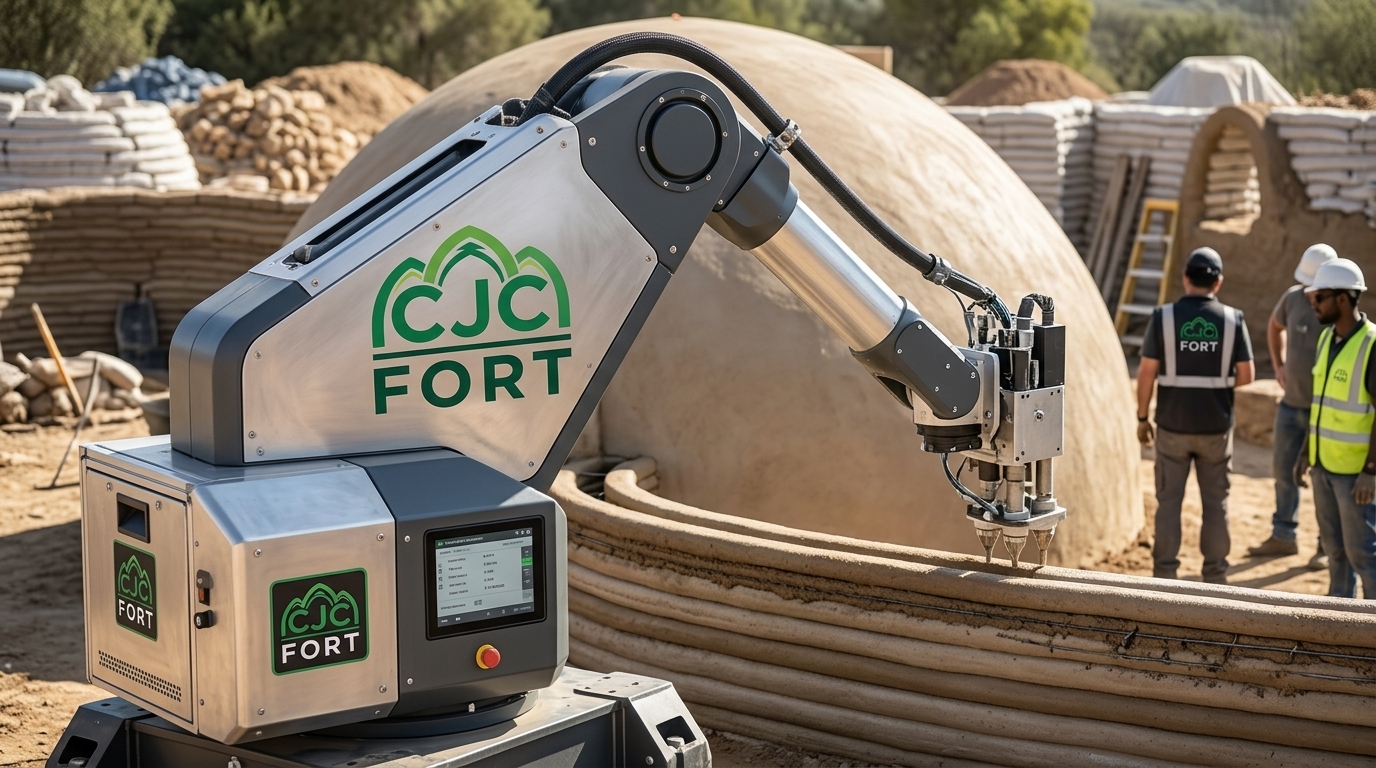

CJC Fort Autonomous Robot Printer

Live Field Kinematics

Full-scale continuous extrusion attachment in tactical earth excavation

EXTRUSION CORE 400 mm Width
COMPACTION RATE >95% Proctor
85% - 95%
In-Situ Soil (ISRU)

Dramatically decreases reliance on imported materials and supply chains.

-90%
Supply Convoy Footprint

Replaces up to 60 concrete trucks with a single cassette transport vehicle.

0%
Portland Cement Required

Eliminates high-cost curing chemicals, additives, and precious potable water.

Standard 8T
Excavator Quick-Hitch

Interchangeable attachment directly deployed on existing engineering fleets.

Dual-Use Strategic Applications

One unified robotic architecture engineered for extreme front-line military survival and sustainable humanitarian shelter.

Hardening the Forward Edge in Contested Theaters

Modern loitering munitions, FPV suicide drones, and indirect artillery shatter traditional concrete barriers with lethal secondary spalling. CJC FORT provides continuous high-inertia soil monolithic domes and berms.

Drone & Indirect Fire Deflection:

Automated corbelled catenary domes provide direct overhead protection without complex formwork or vulnerable flat roof beams.

Lightening the Logistical Tether:

Eliminates up to 90% of cement convoy tonnage. A single tactical truck carrying sleeve cassettes replaces 60+ cement and gravel mixer trucks.

Force Preservation & Rapid Erection:

Reduces labor from a platoon of 30 soldiers digging for days down to 2 machine operators completing a bunker in 4–6 hours.

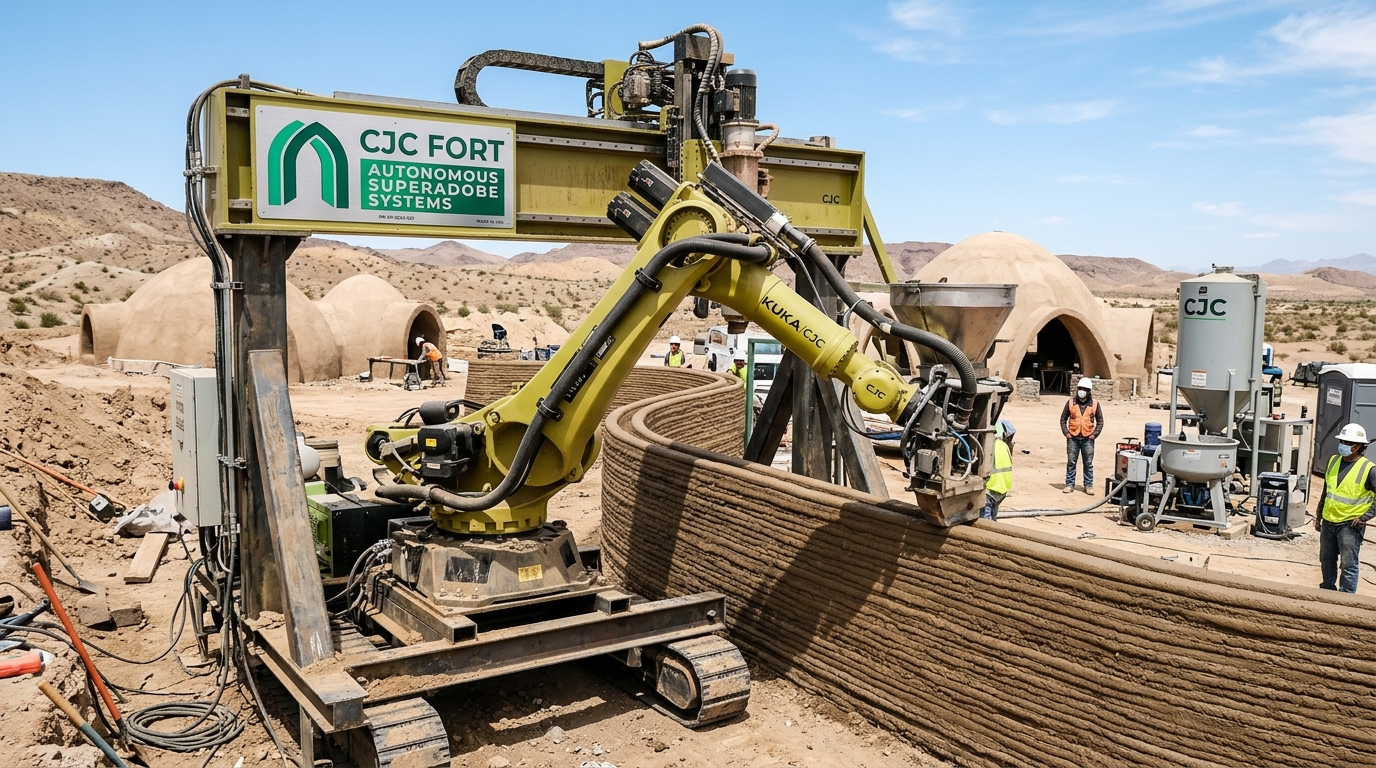

CJC Fort Defense Hardening
TACTICAL APPLICATION FOB & BUNKER EXPEDITIONARY

Automatic extrusion of blast-damping earth walls with dual barbed wire reinforcing.

ENGINEERING ARCHITECTURE

Mechatronic Subsystems Breakdown

CAD-verified 40-part parametric engineering designed for maximum field durability and quick maintenance.

SUBSYSTEM 01

J-Tube Injection Conduit

Optimized non-clog curved funnel feeding graded soil by gravity and auxiliary auger directly into the packaging chute.

Flow Rate: 12 m³/hr Continuous
SUBSYSTEM 02

VFFS Raschel Sleeve Dispenser

Continuous tubular geotextile sleeve pack dispensing in real-time around the 400mm compacted earth core.

Material: UV-Stabilized Polypropylene Mesh
SUBSYSTEM 03

Dual Barbed Wire Tensioners

Automatic tension spools embedding twin strands of 4-point galvanized barbed wire between courses for immense shear interlock.

Tensile Shear Interlock: >12 kN/m
SUBSYSTEM 04

High-Frequency Tampers

Multi-piston pneumatic/hydraulic dynamic compactor delivering continuous vertical impact to reach >95% standard Proctor density.

Compaction Force: 15–22 kN @ 800 RPM
SUBSYSTEM 05

Excavator Quick-Hitch Hub

Universal mechanical and hydraulic coupling compatible with military and commercial 8-to-12 ton tracked excavators.

Total Mass: <650 kg (Payload Optimized)
FREECAD VALIDATED 100% Sólidos Manifold

Parametric Master Pipeline

Every gear, bracket, and nozzle is parametrically linked in a unified codebase with automated interference and clearance checking.

Codebase: FreeCAD Python GitHub Repo →
LOGISTICAL IMPACT

Tactical & Sustainability ROI Calculator

Select wall perimeter length to project logistical savings compared to traditional concrete 3D printing and HESCO bastions.

50 m (164 ft)
10m (Puesto de Tiro) 50m (Búnker C2) 100m (Perímetro FOB) 200m (Base Avanzada)
Local Soil Utilized:
40 m³ (64 tons)
100% In-Situ (ISRU)
Concrete Trucks Saved:
6 Trucks
Zero Supply Interdiction
Potable Water Conserved:
7,200 L
No Portland Curing
Personnel Exposure:
2 Operators (vs 30 Soldiers)
Completed in 4 to 6 hrs
APPLIED PROTOTYPES

Hardware Engineering & Mockups

Field application mockups, CAD-verified vault geometries, and CJC FORT brand presence.

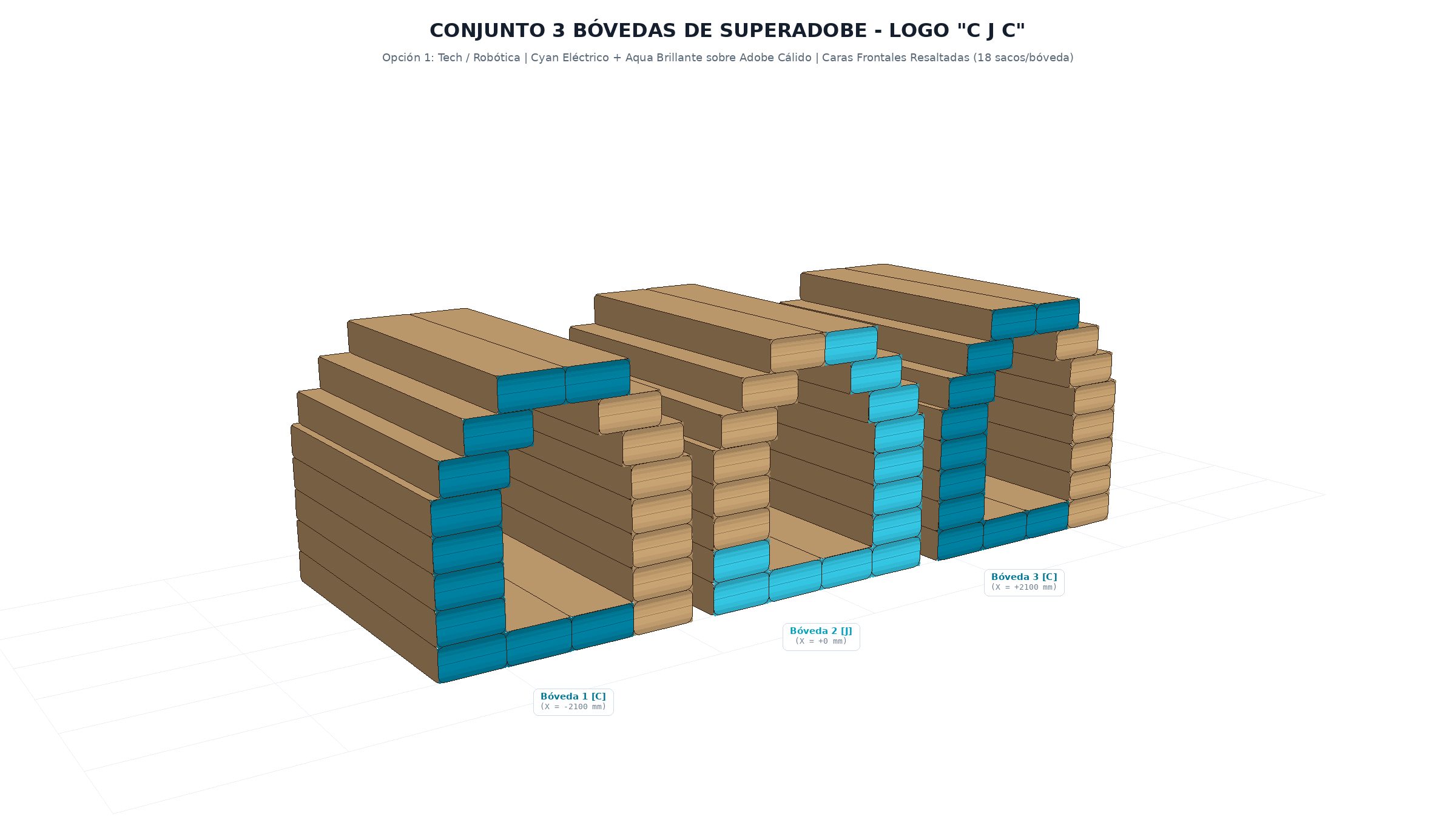

Autonomous Earth Printer
ROBOTICS PLATFORM

Full-Scale Extruder Attachment

Mounted on standard quick-hitch pins for zero-delay integration with excavators.

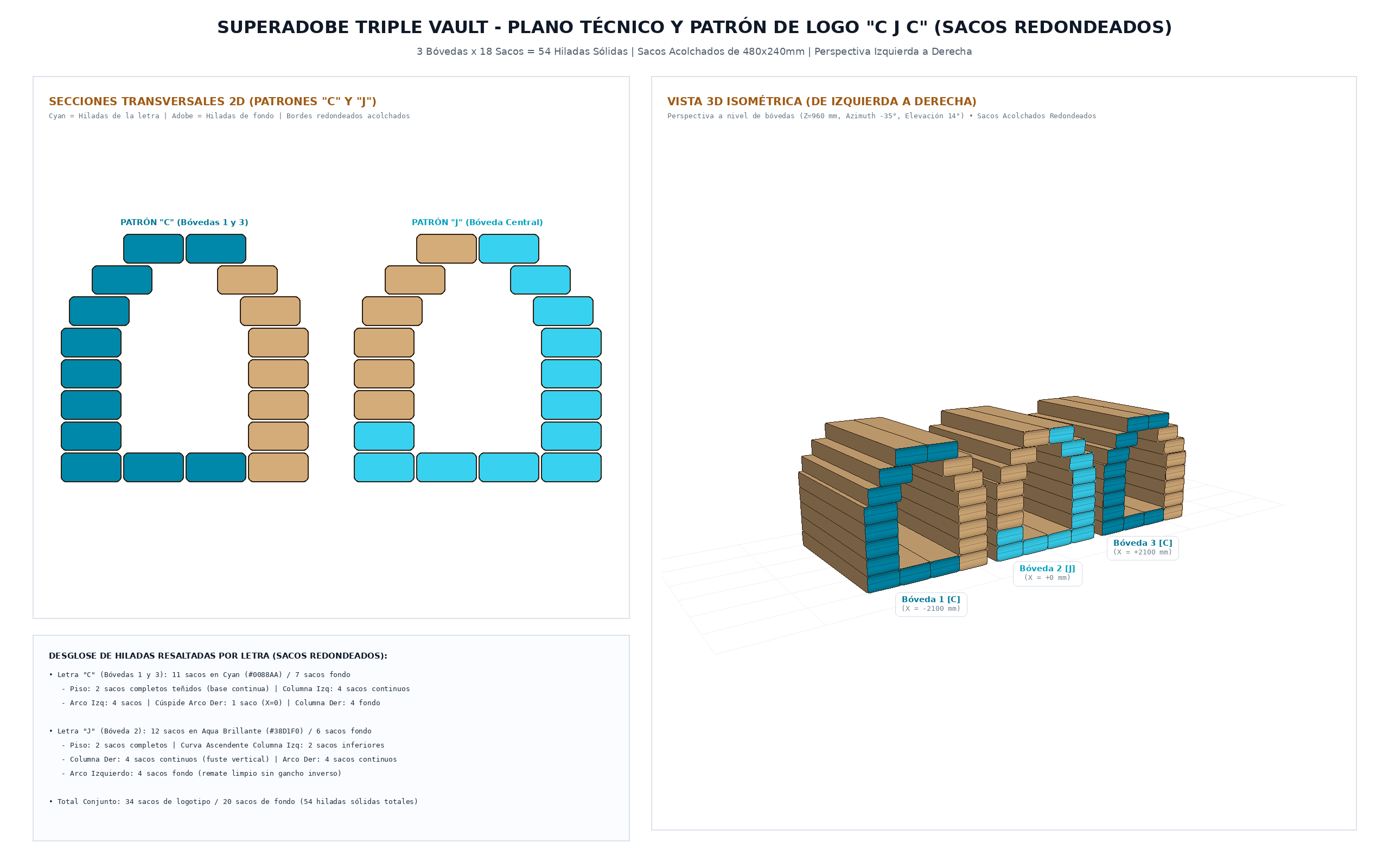

Parametric Catenary Vault Multi-view
CAD KINEMATICS

Parametric Catenary Vault

Validated multi-angle study of corbelled earth courses without tensile cracking.

CJC Fort Engineering PPE
FIELD DEPLOYMENT

Engineering Team & Operations

Field-tested gear, safety standards, and operational protocol on active sites.

DIRECT ENGAGEMENT

Request Briefing / Partner With Us

We welcome discussions with defense innovation units (USACE, DIU, Army xTech), impact investors, and construction contractors.

Direct Contact: contact@cjcfort.com
